Sheet plates and coils are widely used in various industries due to their versatility, strength, and adaptability.
Sheets and plates are flat, thin pieces of metal with a uniform thickness, available in various sizes. Sheets are typically thinner, ranging from 0.1 mm to 60 mm and Plates are Thicker than sheets, generally over 6 mm. These are the common materials of sheet plates: Stainless steel, aluminum, carbon steel, copper, and brass.

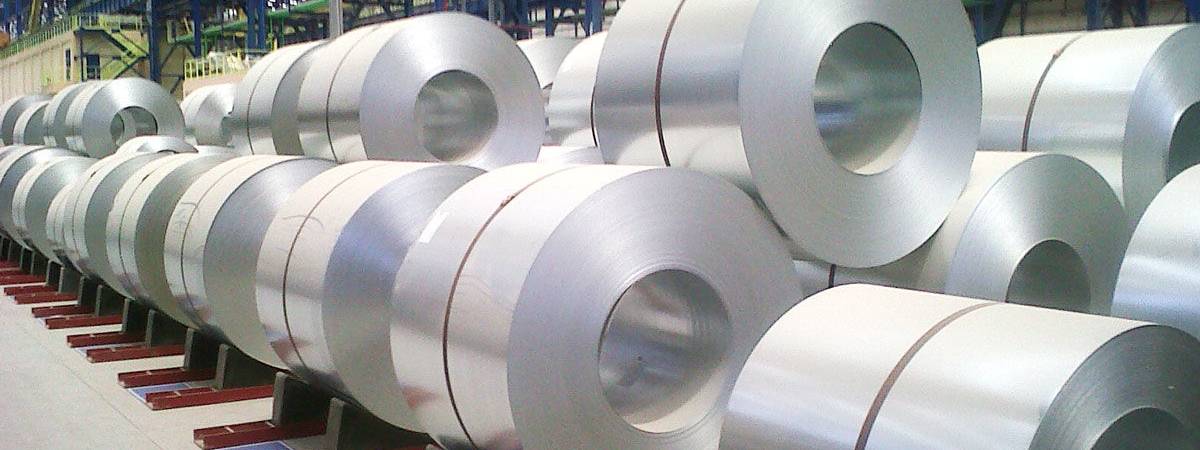

Coils are continuous rolls of metal that can be unwound into flat sheets or plates. They are typically produced by rolling the metal and then coiling it up for easier transportation and storage. common coils materials are Steel (stainless, carbon, galvanized), aluminum, and copper.
Properties of Sheet Plates and Coils:
- Strength and Durability: Sheet plates and coils are made from materials that offer high tensile strength, making them suitable for both load-bearing and precision applications.
- Corrosion Resistance: Stainless steel, aluminum, and galvanized materials offer excellent resistance to rust and corrosion, extending their life in harsh environments.
- Lightweight: Materials like aluminum are valued for their strength-to-weight ratio, making them ideal for industries where reducing weight is crucial, such as aerospace and automotive.
- Formability and Machinability: Sheets and coils can be easily bent, cut, or shaped to fit specific applications. Cold rolled sheets and plates offer higher precision and better finishes, which are essential for applications requiring tight tolerances.
Specifications for Sheet Plates and Coils
| Size: |
0.1 mm to 60 mm thk x 1000 / 1220 / 1250 / 1500 / 2000×2000 / 2500 / 3000 / 5000 / 6000 |
| Form |
Sheet, Plate, Coil, Flat, Strip, Circle, Profile, Shim, Foil, Chequered Plate |
Stainless Steel Sheet Plates and Coils
| Standards: |
ASTM A240 / ASME SA240 |
| Grades: |
201, 202, 301, 302, 304, 304L, 309, 310, 316, 316L, 316LN, 316Ti, 317L, 321, 347, 405, 409, 410, 420, 430, 440C, 17-4ph, 904L, 253MA, 353MA, AL-6XN (N08367), Alloy 28 (N08028), A286 (S66286). |
Duplex & Super Duplex Sheet Plates and Coils
| Standards: |
ASTM A240 / ASME SA240, ASTM A479 / ASME SA479 |
| Grades: |
2205 (S31803 / S32205), SMO254 (S31254), 2507 (S32750), ZERON 100 (S32760), Ferralium 255 (S32550), LDX 2101 (S32101) |
Mild Steel Sheet Plates and Coils
| Standards: |
ASTM A36 |
| Grades: |
S275JR,IS-2062 GR. A / B, Fe 410WA, Fe 410WB |
Carbon Steel Sheet Plates and Coils
| Standards: |
ASTM A36, IS 2062, CK60, Wear Resistant Steel, Boiler Quality ASTM A516 |
| Grades: |
400 HB, 450 HB, 500 HB, 60, 70, Corten A, Corten B, Hadfield Manganese Steel |
Alloy Steel Sheet Plates and Coils
| Standards: |
ASTM A387 / ASME SA387 |
| Grades: |
11, 12, 22, 5, 9, 91, A283 Gr. C, 16Mo3 |
Cupro Nickel Sheet Plates and Coils
| Standards: |
ASTM / ASME SB122 |
| Grades: |
Cu-Ni 90 / 10 , Cu-Ni 70 / 30 |
Nickel Alloy Sheet Plates and Coils
| Standards: |
ASTM B162 / ASME SB162 |
| Grades: |
200 (N02200), 201 (N02201), ASTM B463 – Alloy 20 (N08020). |
Monel Sheet Plates and Coils
| Standards: |
ASTM / ASME SB 127 |
| Grades: |
Monel 400,K500 |
Hastelloy Sheet Plates and Coils
| Standards: |
ASTM B575 / ASME SB575, ASTM B333 / ASME SB333 |
| Grades: |
C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675). |
Aluminium Sheet Plates and Coils
| Standards: |
ASTM / ASME SB209 |
| Grades: |
6061, 6082, 5083, 5086, 5052 ,6063, 7075, 1100 |
Brass Sheet Plates and Coils
| Standards: |
ASTM / ASME SB 62 |
| Grades: |
UNS C36000 |
Copper Sheet Plates and Coils
| Standards: |
ASTM / ASME SB 62 |
| Grades: |
UNS C12200 |
Titanium Sheet Plates and Coils
| Standards: |
ASTM B256 / ASME SB256 |
| Grades: |
2, 5 (Ti6AI4V), 7. |
